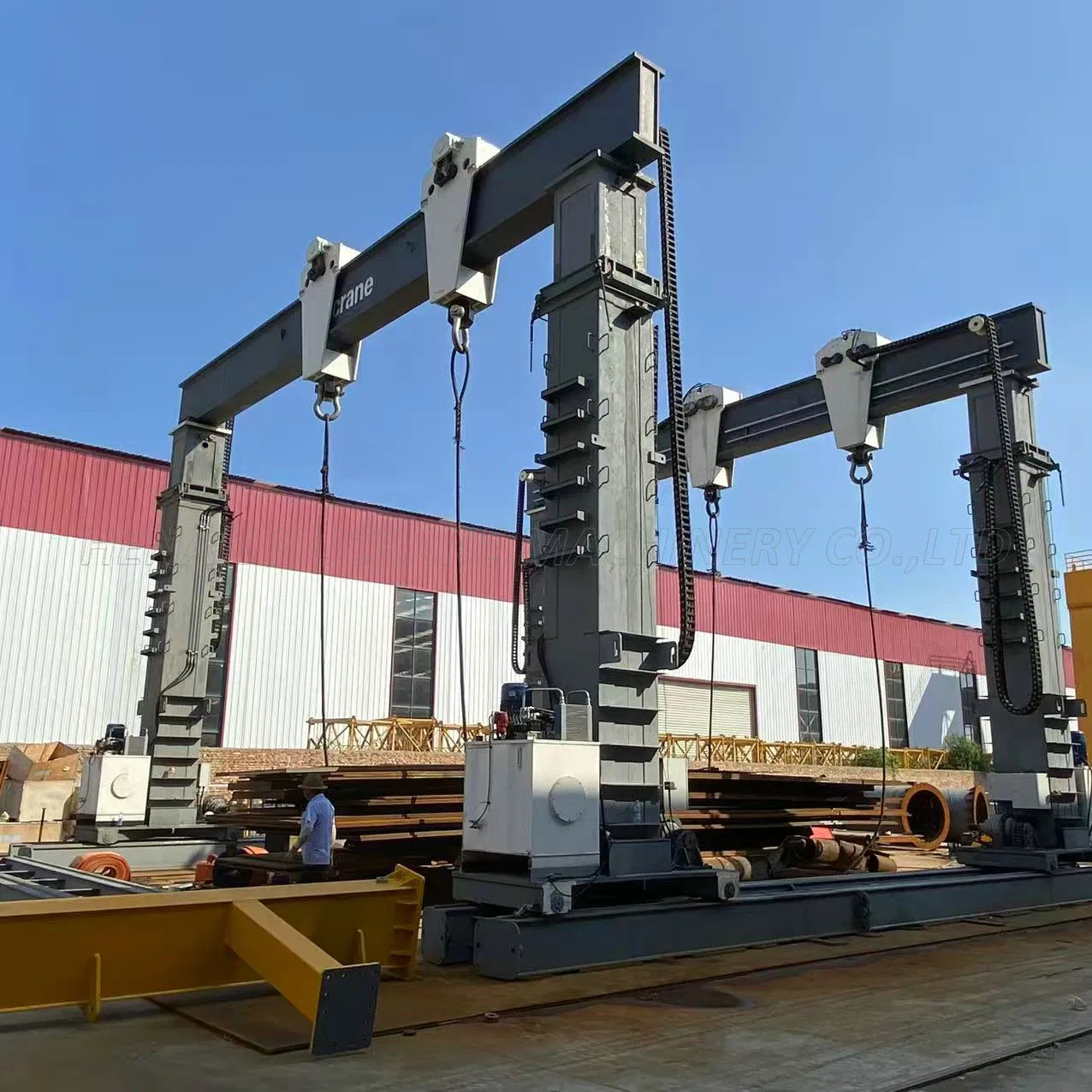

Lifting Gtg Stg 100-1200ton Hydraulic Gantry Crane with Electric Lifting Point

1 / 5

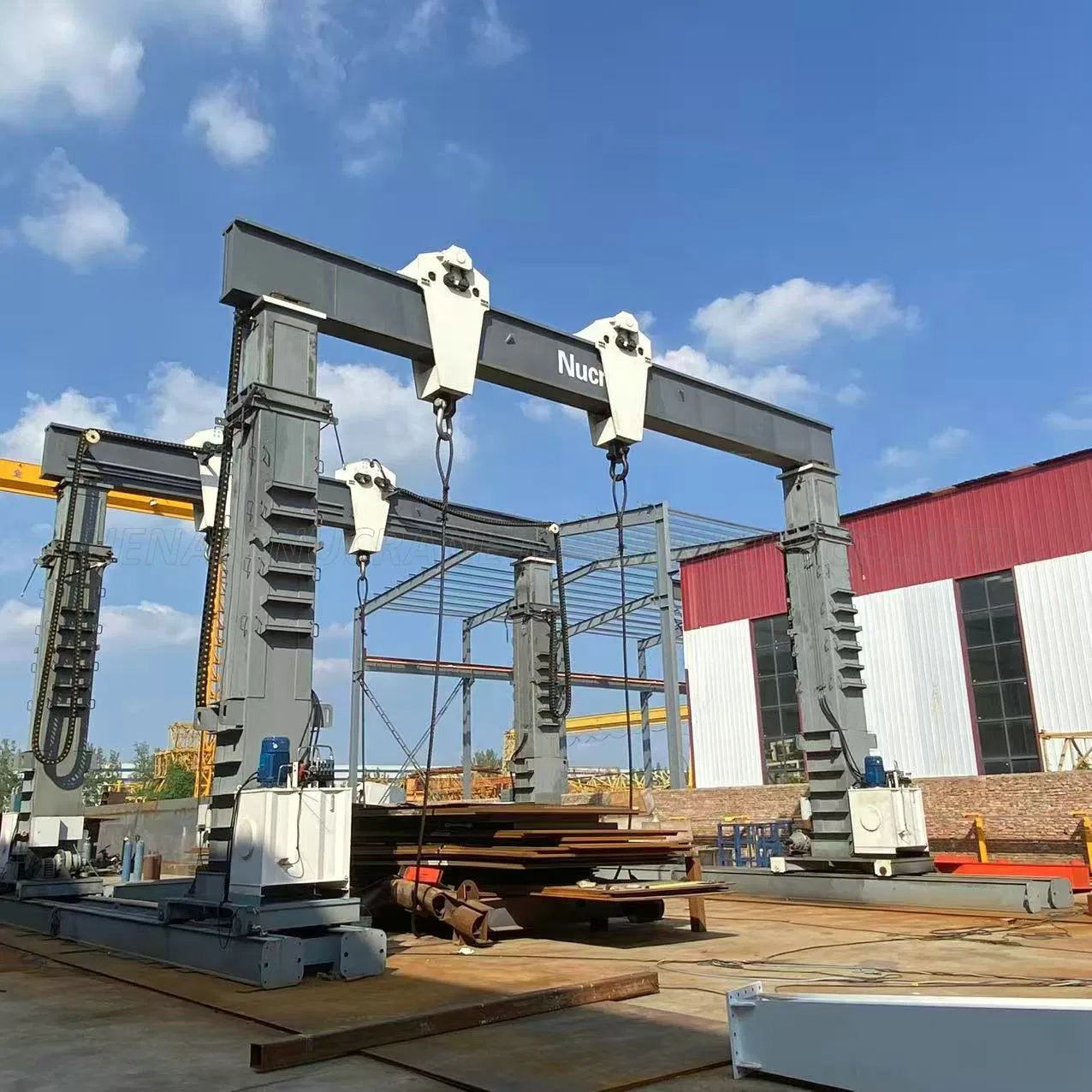

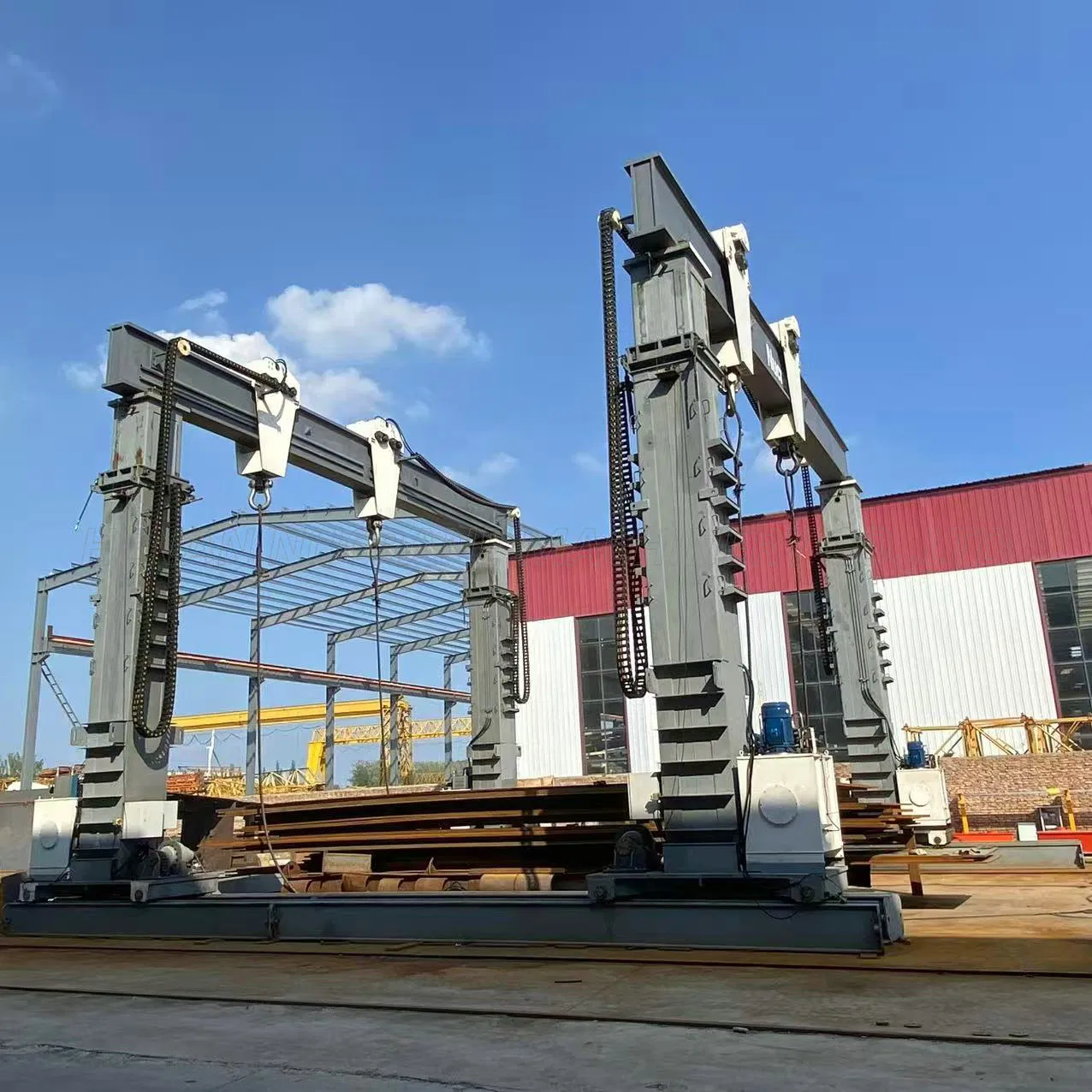

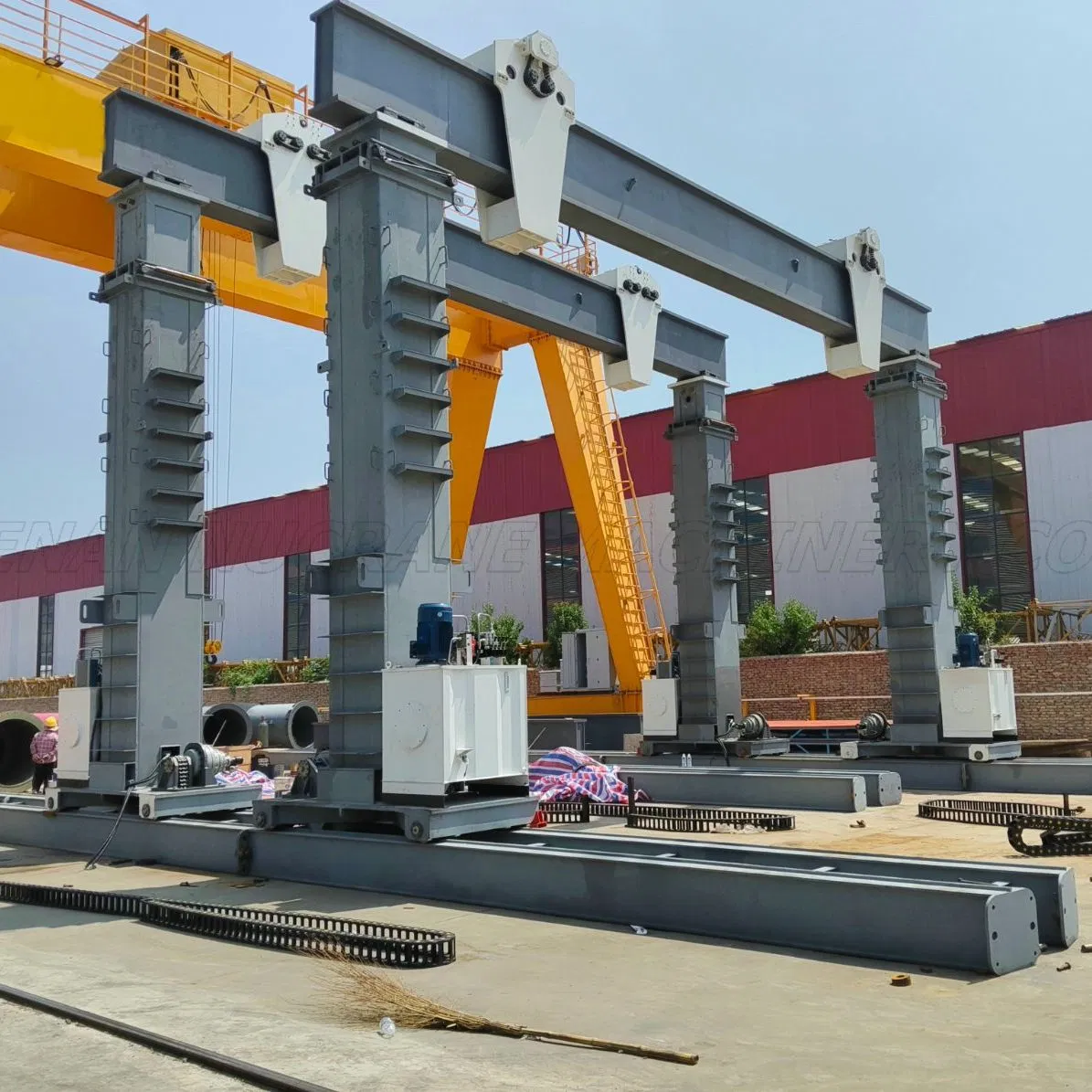

Lifting Gtg Stg 100-1200ton Hydraulic Gantry Crane with Electric Lifting Point

Customization:	Available
After-sales Service:	Give The Solution Within 6 Hours
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info & Specifications

Model NO.

SL hydraulic gantry crane

Certification

CE, ISO9001

Condition

New

Max Lifting Weight

100-1200ton

Max Lifting Height

15-20m

Operation Form

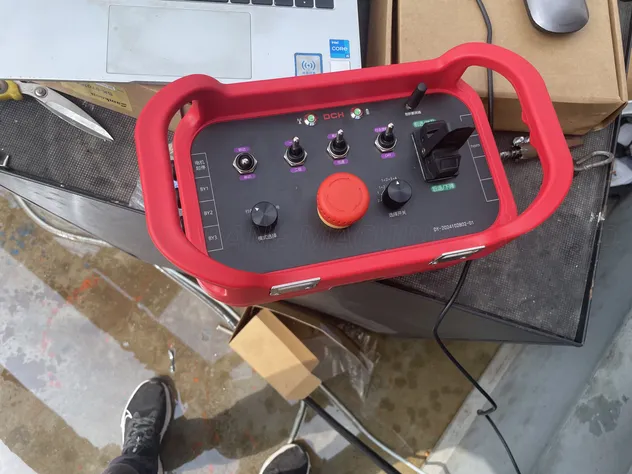

Remote Control

Type

Shipbuilding Gantry Crane

Main Girder Form

Double Girder

Lifting Speed

0-3mm/S

Traveling Speed

10-15mm/S

Driven Mode

Hydraulic

Production Capacity

500sets/Year

Product Description

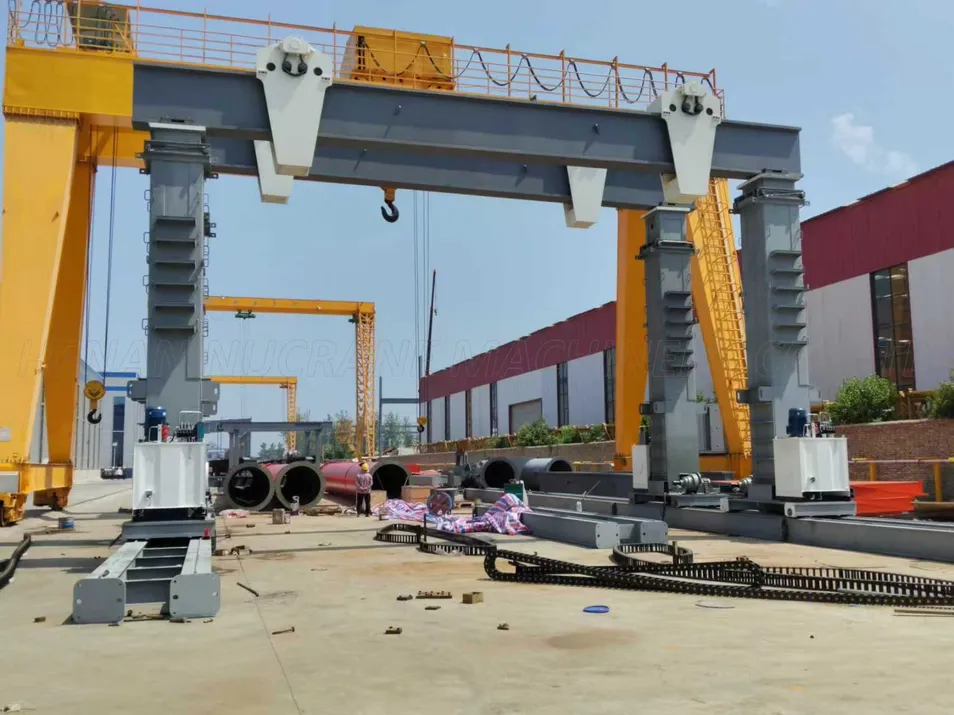

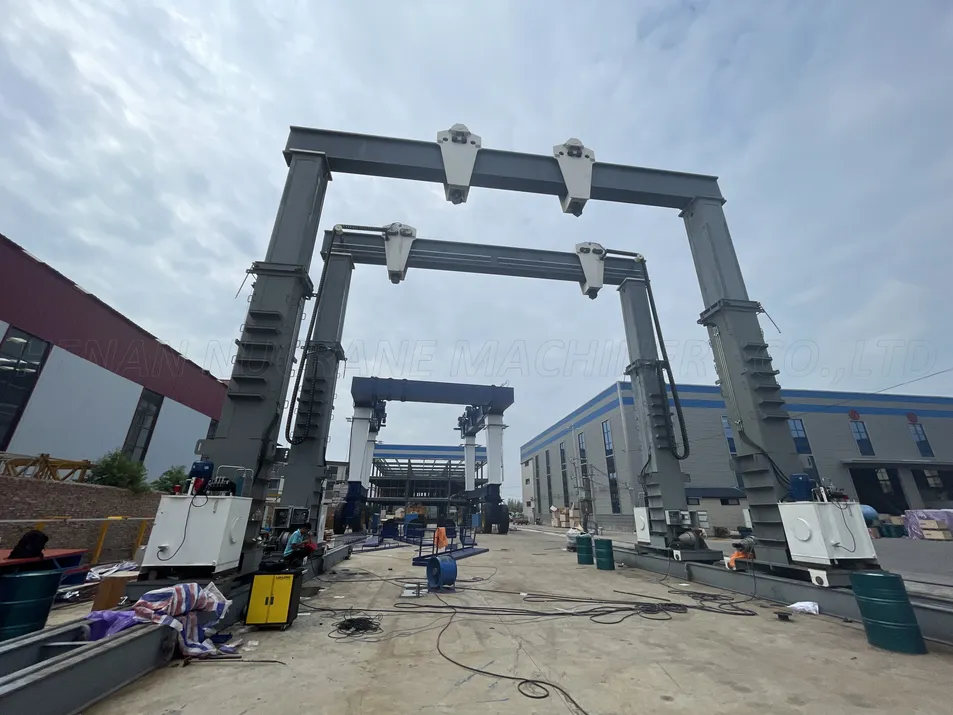

400ton hydraulic gantry crane
Hydraulic gantry cranes are primarily utilized in space-limited environments for heavy lifting tasks, including the installation of large transformers, ship propellers, and heavy industrial equipment within workshops.

The system comprises four jacking units, a hydraulic station, mobile spreaders, beams, and wireless remote control. Each unit offers a carrying capacity of 100 tons. The system employs a closed-loop control method with variable speed motors to ensure precise synchronization during lifting and traveling operations.

Features and Advantages

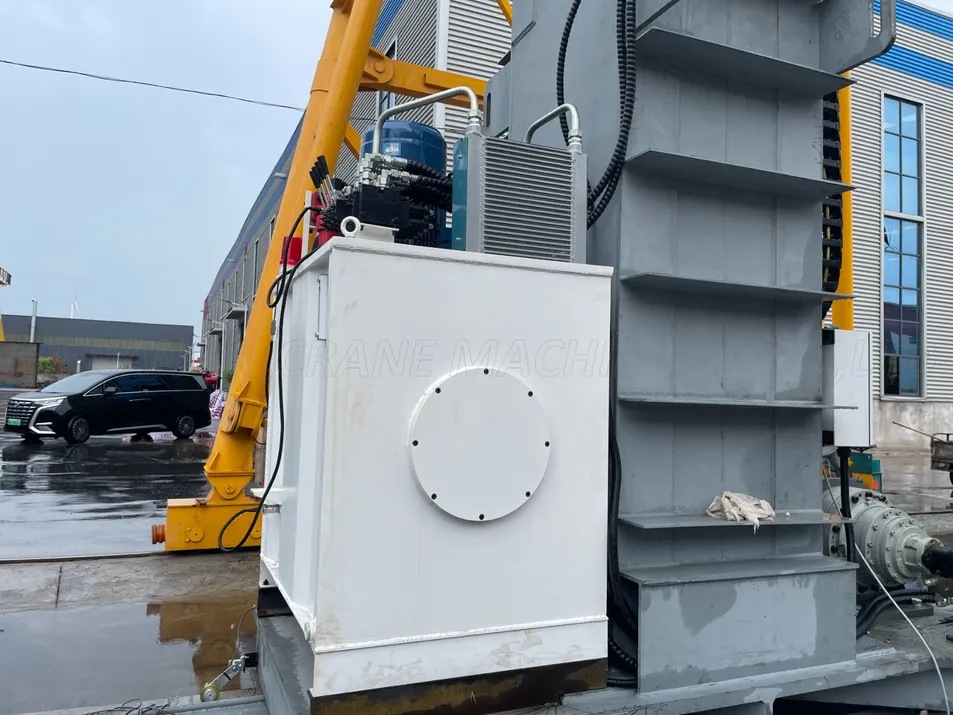

Hydraulic Pump Station
Features a centralized design where one hydraulic station powers four lifting units. Variable speed control allows for flexible adaptation to operational needs, with synchronization maintained via a centralized control system.

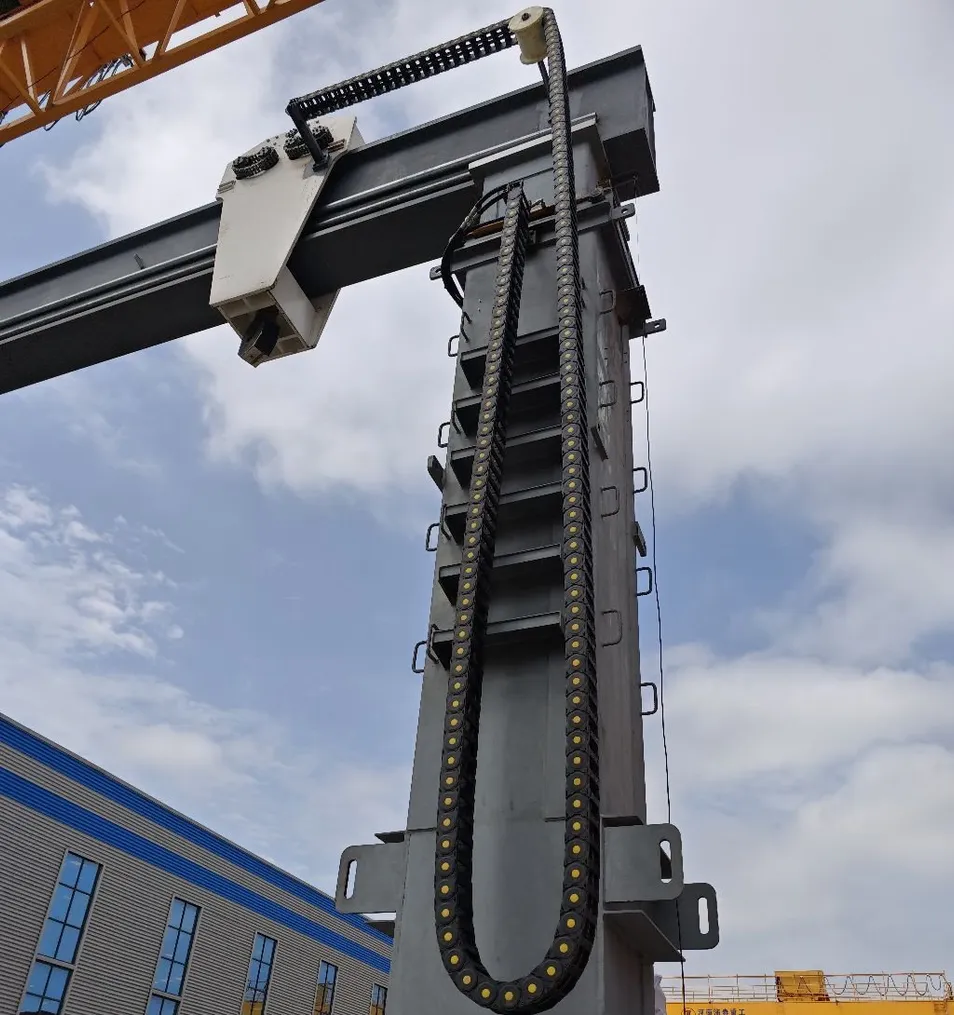

Advanced Lifting Unit

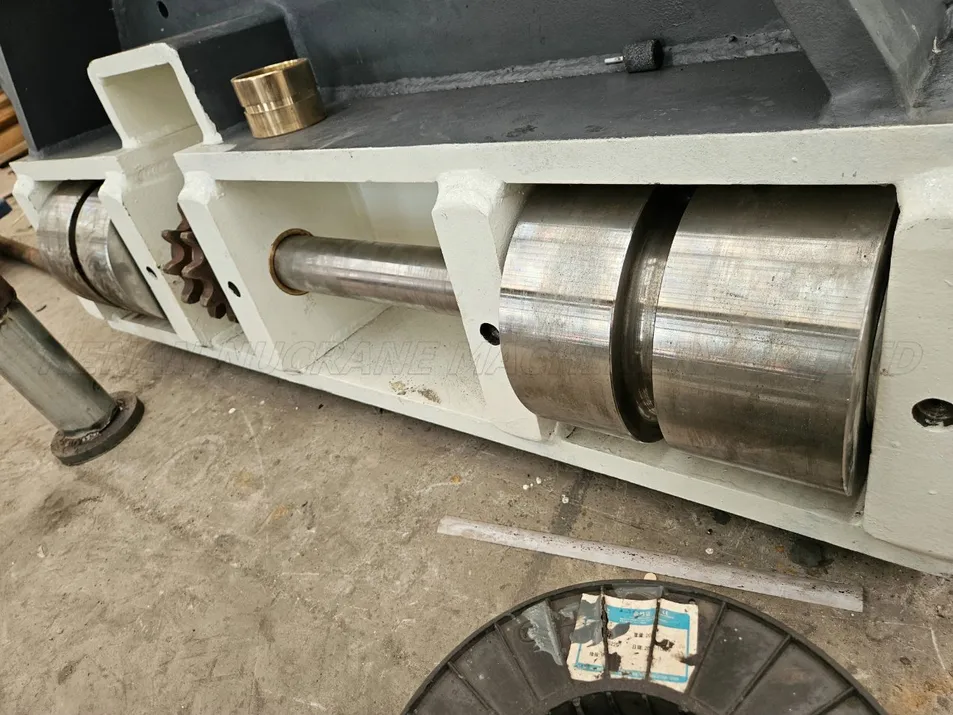

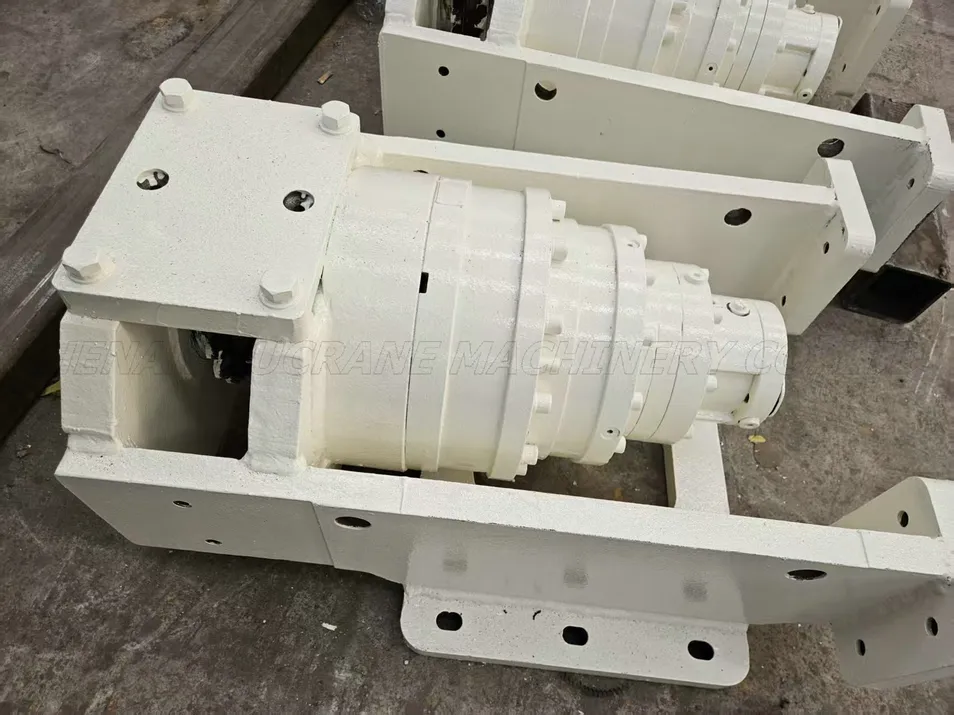

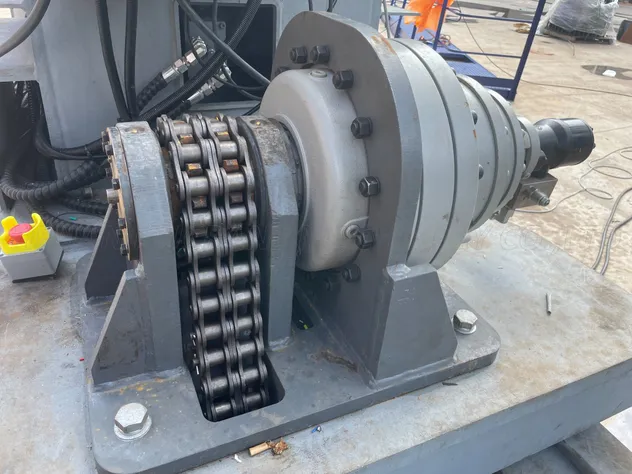

Includes jacking cylinders, driving motors, and planetary reducers. Key safety features include dual locking devices (hydraulic and mechanical cam locking). A spherical roof at the top allows for small displacement corrections.

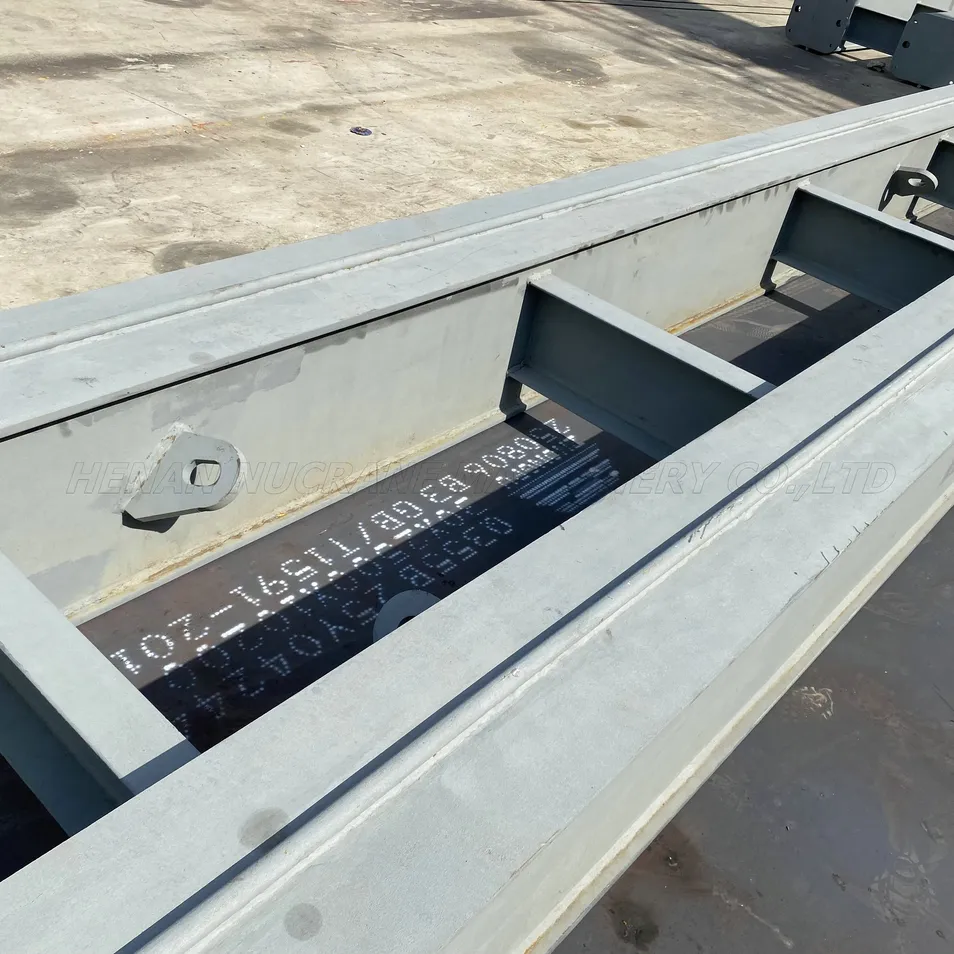

Main Beam and Track
Constructed for high durability with lower deflection (< 1/750). Features C5 anti-corrosion coating and canopy protection for outdoor use. All components undergo shot blasting for superior paint adhesion.

Technical Specification

Parameter	Details / Capacity Options
Lifting Capacity	200ton / 400ton / 800ton / 1000ton
Power Model	External power source / Engine / Generator
Lifting Height	6m - 35m
Span	6m - 20m

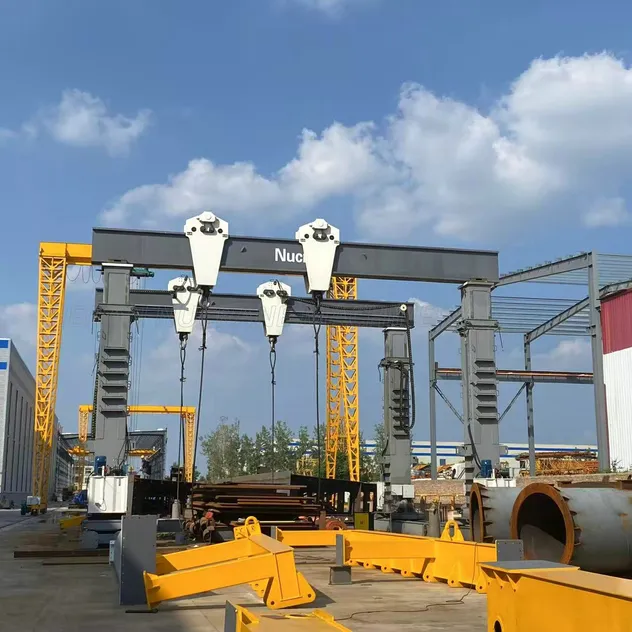

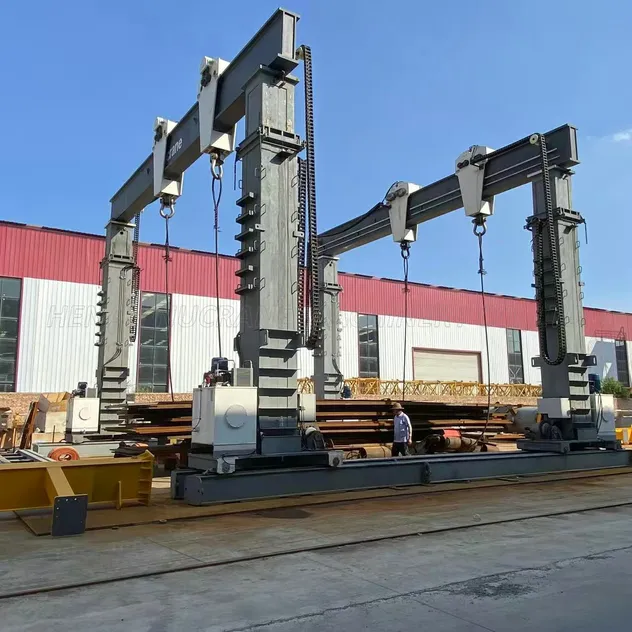

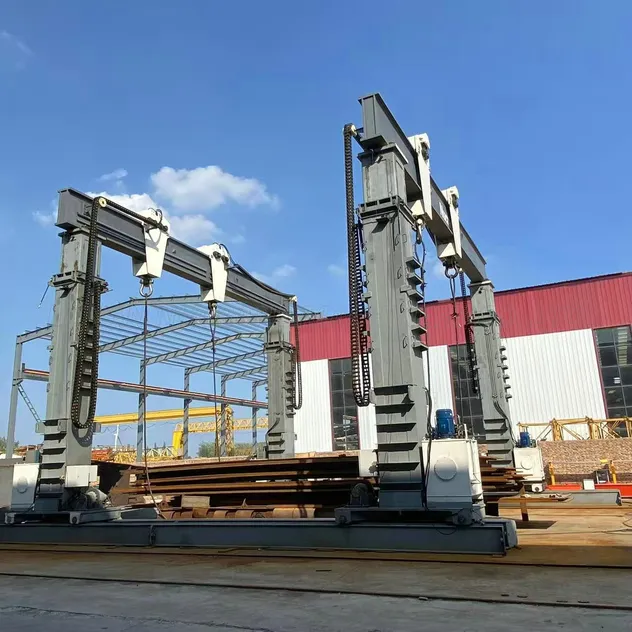

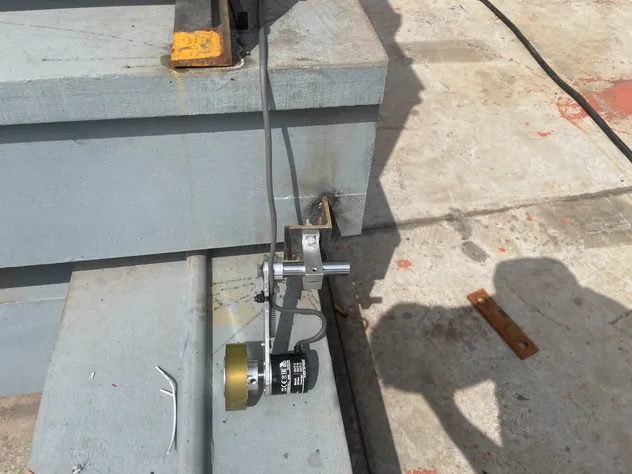

Details Images

Packing & Delivery

✔ Electric parts are packed in high-quality plywood crates to prevent distortion.

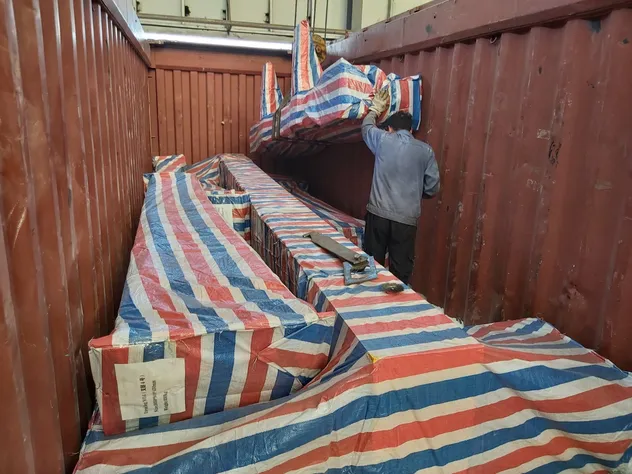

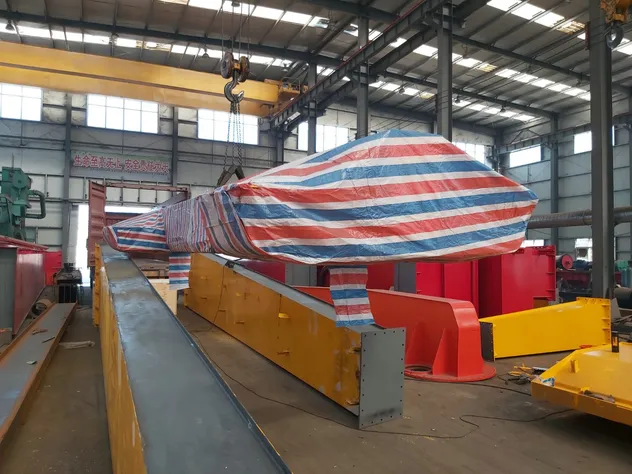

✔ Main beams and end beams are wrapped in plastic woven cloth to prevent abrasion.

✔ Optimized for container shipping or bulk cargo based on dimensions.

✔ Transportation methods are chosen to maximize safety and cost-efficiency.

Frequently Asked Questions

1. What are the primary applications for this hydraulic gantry crane?

It is primarily used for heavy lifting in restricted spaces, such as installing large transformers, ship propellers, and moving massive equipment in workshops.

2. How is lifting synchronization ensured between the legs?

Each leg is equipped with height sensors. The PLC control system monitors real-time feedback and automatically adjusts the oil flow to ensure precise synchronization.

3. What safety locking mechanisms are included?

The lifting units feature a dual locking system comprising hydraulic locking and mechanical cam locking to ensure maximum reliability and safety during operation.

4. Can the load position be adjusted after lifting?

Yes, with the optional mobile lifting gear, the load can be moved along the direction of the crossbeam for precise three-dimensional positioning.

5. How does the crane handle environmental corrosion?

The crane is treated with a C5 protection coating and includes rain/sun covers for the control panels, making it suitable for harsh or outdoor environments.

6. What is the maximum lifting capacity available?

Standard configurations range from 100 to 1200 tons, providing solutions for a wide variety of heavy-duty industrial lifting requirements.
